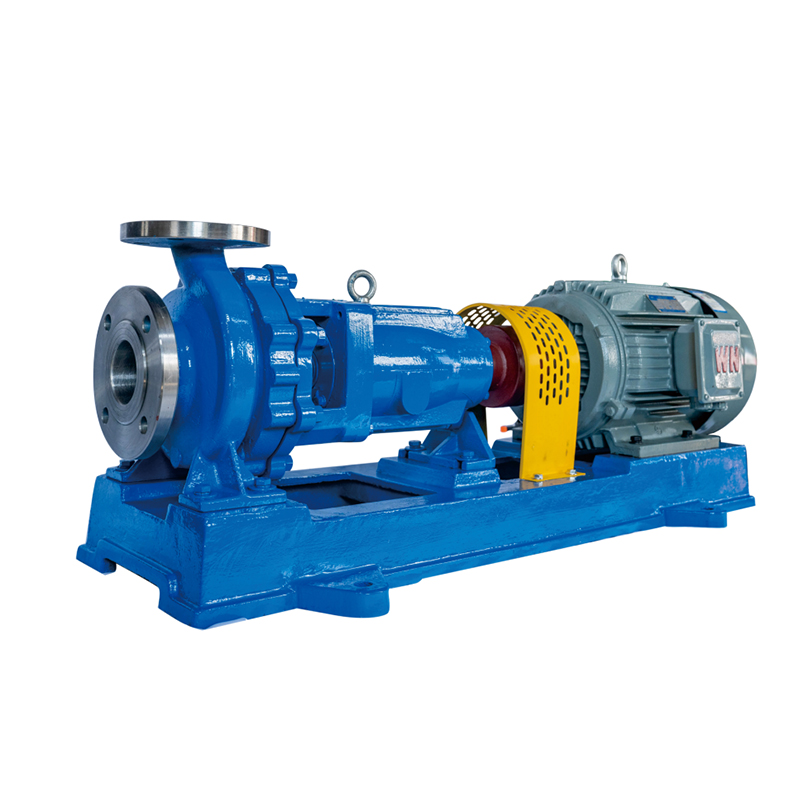

NH Steel Centrifuga Pump

Adepto Quotes

Applicationem Field
Medicina biologica, petrochemical, fodienda, metallurgia, textile imprimendi et tingendi, electricitatis, cibi, libelli. electroplating, purgamentorum curatio, fiue
curatio gas, nova vis, nova materia et aliae industriae.

Sentinam Ritus
Apta ad transferendum mundum vel continens particulas solidas et fibra contenta, temperatura vel caliditas humilis, neutra vel. liquorem mordax. Variae temperaturae et concentrationes solutionis alcalini, variae solutiones salis, omnes species liquidi petrolei et chemici, compositiones organicae, et
aliae materiae corrosivae et productae.

Design Instruction
NH Series chemica processus chemicae mollis est tardus uber sentinae substitutus ab IH Series. Modus ac pensione perficienda sicut idem ac IH Series.T sentinam suam exsecutioni mandarunt Latin GB/T5662 < The Marks. Effectus et specificatio directionis Axialis finis-suction centrifugae sentinae (16 bar )> .cum valde converti possunt pro partibus generalibus parce sentinam. Quinque uncis specificationis sentinae plenam seriem specificationis soleatus operire possunt.
Potest eligi stipare glandulae seu sigillum mechanicum secundum petitionem huius. Mechanica signacula unam faciem (finis) faciem, aequatam faciem, e vel faciem inaequalitatem eligere possunt. Impulsor designari potest per genus apertum vel semi-apertum. Aliquid fibra seu particula liquores transferre potest. est
plerumque a vexillum chemica sentinam centrifugam in fine agrorum chemicorum.

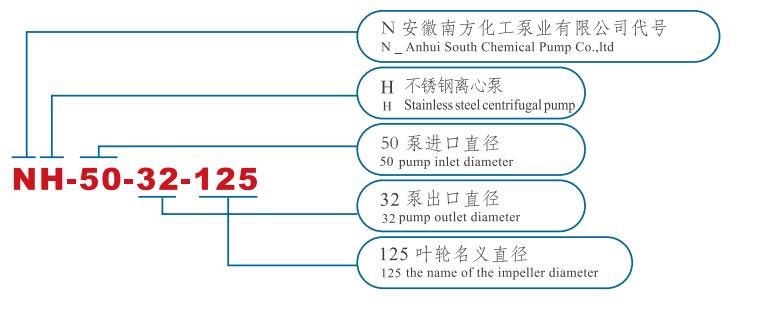

Exemplar** No	Fluere Capacitas (m³/h)	Sentinam Caput (m)	NPSH _r (m)	Effectus (%)	Motor Power (KW)	Mobilitate rotating (r/min)	Diameter(mm)
							Inlet	exitus
NH40 - 25 - 125	4	22	2	40	1.5	2900	40	25
	6	20
	8	18.5
	2	5.5	2	34	0.55	1450
	3	5
	4	4.5
NH40 - 25 - 160	4	34	2	30	2.2	2900	40	25
	6	32
	8	28
	2	9	2	27	0.55	1450
	3	8
	4	7
NH40 - 25 - 200	4	52	2	26	4	2900	40	25
	6	50
	8	48
	2	13.5	2	20	0.75	1450
	3	12.5
	4	12
NH50 - 32 - 125	10	22	3	52	2.2	2900	50	32
	12.5	20
	15	18.5
	5	5.5	3	45	0.55	1450
	6.3	5
	8	4.6
NH50 - 32 - 160	10	33	3.5	38	4	2900	50	32
	12.5	32
	15	28
	5	8.6	3.5	35	0.55	1450
	6.3	8
	8	7
NH50 - 32 - 200	10	52	3.5	38	7.5	2900	50	32
	12.5	50
	15	48
	5	13	3.5	33	1.1	1450
	6.3	12.5
	8	12
NH50 - 32 - 250	10	82	3.5	38	11	2900	50	32
	12.5	80
	15	75
	5	20.5	3.5	33	1.5	1450
	6.3	20
	8	19.5
NH65 - 50 - 125	15	22	3.5	51	3	2900	65	50
	25	20
	30	18.5
	7.5	5.5	3.5	48	0.55	1450
	12.5	5
	15	4.5
NH65 - 50 - 160	15	33	3.5	56	5.5	2900	65	50
	25	32
	30	28
	7.5	8.6	3.5	50	1.1	1450
	12.5	8
	15	7
NH65 - 40 - 200	15	52	3.5	52	11	2900	65	40
	25	50
	30	48
	7.5	13	3.5	46	1.5	1450
	12.5	12.5
	15	12
NH65 - 40 - 250	15	82	3.5	36	18.5	2900	65	40
	25	80
	30	78
	7.5	20.5	3.5	32	3	1450
	12.5	20
	15	19.5
NH65 - 40 - 315	15	127	3.5	38	30	2900	65	40
	25	125
	30	123
	7.5	33	3.5	35	5.5	1450
	12.5	32
	15	30
NH80 - 65 - 125	40	22	4	60	5.5	2900	80	65
	50	20
	60	18.5
	20	5.5	4	55	1.1	1450
	25	5
	30	4.6

Exemplar** No	Fluere Capacitas (m³/h)	Sentinam Caput (m)	NPSH _r (m)	Effectus (%)	Motor Power (KW)	Mobilitate rotating (r/min)	Diameter(mm)
Exemplar** No	Fluere Capacitas (m³/h)	Sentinam Caput (m)	NPSH _r (m)	Effectus (%)	Motor Power (KW)	Mobilitate rotating (r/min)	Inlet	exitus
NH80 - 65 - 160	40	33	4	62	11	2900	80	65
	50	32
	60	28
	20	8.6	4	60	1.5	1450
	25	8
	30	7
NH80 - 50 - 200	40	52	4	63	15	2900	80	50
	50	50
	60	48
	20	13	4	57	2.2	1450
	25	12.5
	30	12
NH80 - 50 - 250	40	82	4	60	22	2900	80	50
	50	80
	60	78
	20	20.5	4	53	4	1450
	25	20
	30	19.5
NH80 - 50 - 315	40	127	4	50	45	2900	80	50
	50	125
	60	123
	20	33	4	45	7.5	1450
	25	32
	30	30
NH100 - 80 - 125	80	22	4.5	70	11	2900	100	80
	100	20
	120	18.5
	30	5.5	4.5	67	1.5	1450
	50	5
	60	4.6
NH100 - 80 - 160	80	33	4.5	70	15	2900	100	80
	100	32
	120	28
	30	8.6	4.5	65	3	1450
	50	8
	60	7
NH100 - 65 - 200	80	52	4.5	71	30	2900	100	65
	100	50
	120	48
	30	13
	50	12.5	4.5	60	4	1450
	60	12
NH100 - 65 - 250	80	82	4.5	70	45	2900	100	65
	100	80
	120	78
	30	20.5	4.5	64	7.5	1450
	50	20
	60	19.5
NH100 - 65 - 315	80	127	4.5	60	75	2900	100	65
	100	125
	120	123
	30	33	4.5	56	11	1450
	50	32
	60	30
NH125 - 100 - 200	150	52	5	65	55	2900	125	100
	200	50
	240	48
	75	13	5	60	11	1450
	100	12.5
	120	12
NH125 - 100 - 160	150	32	5	61	30	1450
NH125 - 100 - 250	150	82	5	68	75	2900	125	100
	200	80
	240	73
	75	20.5	5	62	15	1450
	100	20
	120	19.5
NH125 - 100 - 315	75	33	5	58	22	1450	125	100
	100	32
	120	30
NH125 - 100 - 400	75	52	5	55	37	1450	125	100
	100	50
	120	48
NH150 - 125 - 250	150	20.5	6	63	22	1450	150	125
	200	20
	240	19.5
NH150 - 125 - 315	150	33	6	75	30	1450	150	125
	200	32
	240	30
NH150 - 125 - 400	150	52	6	64	55	1450	150	125
	200	50
	240	48
NH200 - 150 - 250	250	20.5	7	68	37	1450	200	150
	400	20
	460	19.5
NH200 - 150 - 315	250	33	7	73	55	1450	200	150
	400	32
	460	30
NH200 - 150 - 400	250	52	7	73	90	1450	200	150
	400	50
	460	48
NH250 - 200 - 315	300	34	7	76	75	1450	250	200
	600	32
	750	28

Conditiones opus

Diam laoreet	25 - 200mm
Operatio Temperature	- 20℃ - 165℃
Fluat capacitas dolor	0.8m³/h - 400m³/h
Caput sentinam dolor	12.5m - 130m
Materiae dolor	304/316/316L/904L/TA2/HC276
Designed Standard	GB/T5662, ISO2858, EN733 / DIN24255
